P901: Compression Straight & Reduced Coupling
P901

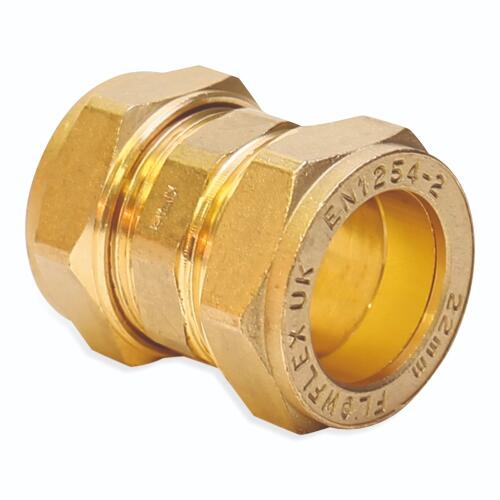

Compression Straight & Reduced Coupling
P901
Compression Straight & Reduced Coupling
Specifications
The specifications section outlines the product’s construction, key features, and essential data, providing a clear overview of its quality and performance.
General
| Applications | Chilled Water Systems, Cold Water Services, Commercial, Compressed Air, Domestic, Domestic Low Pressure Gas to EN 1775, Fire Protection Services to EN 12845, Fuel Gas, Fuel Services, Heating Installations, Hot Water Services, Industrial, Liquid Fuels |
|---|---|
| Approvals | BSI, WRAS |
| Built To | BS EN 1254 |
| Combines With | BS EN 1057 |
| Connects Using | BS EN 1254-2 |
| HS Code | 74122000 |
| Product Code | P901 |
| Product Ranges | Type A Compression Fittings |
Construction
| 1 | Body | CW617N (Brass) |
|---|---|---|
| 2 | Compression Olive | CW509L (Brass) |
| 3 | Brass Nut | CW617N (Brass) |
Variations
Our product variants come in different sizes to suit your needs, all with the same reliable specifications and performance. Choose the perfect fit without compromising on quality.
| Code | Description | Mass (kg) | Bag Qty | Box Qty |
|---|---|---|---|---|
| P901.01 | 6 x 6mm | 0.04 | 20 | 300 |
| P901.02 | 8 x 8mm | 0.03 | 10 | 1000 |
| P901.13 | 8 x 6mm | 0.03 | 20 | 300 |
| P901.14 | 10 x 8mm | 0.05 | 10 | 300 |
| P901.03 | 10 x 10mm | 0.06 | 10 | 200 |
| P901.15 | 12 x 8mm | 0.04 | 20 | 200 |
| P901.16 | 12 x 10mm | 0.05 | 20 | 200 |
| P901.04 | 12 x 12mm | 0.05 | 20 | 200 |
| P901.164 | 14 x 10mm | 0.07 | 20 | 200 |
| P901.166 | 14 x 12mm | 0.07 | 20 | 200 |
| P901.042 | 14 x 14mm | 0.08 | 20 | 200 |
| P901.17 | 15 x 8mm | 0.06 | 20 | 200 |
| P901.18 | 15 x 10mm | 0.07 | 20 | 200 |
| P901.19 | 15 x 12mm | 0.06 | 20 | 200 |
| P901.190 | 15 x 14mm | 0.12 | 20 | 200 |
| P901.05 | 15 x 15mm | 0.07 | 20 | 200 |
| P901.1905 | 16 x 10mm | 0.07 | 20 | 200 |
| P901.191 | 16 x 14mm | 0.07 | 20 | 200 |
| P901.192 | 16 x 15mm | 0.07 | 20 | 200 |
| P901.062 | 16 x 16mm | 0.07 | 20 | 200 |
| P901.1922 | 18 x 10mm | 0.08 | 10 | 100 |
| P901.1921 | 18 x 12mm | 0.08 | 10 | 100 |
| P901.193 | 18 x 15mm | 0.09 | 10 | 100 |
| P901.07 | 18 x 18mm | 0.10 | 10 | 100 |
| P901.20 | 22 x 15mm | 0.11 | 10 | 100 |
| P901.203 | 22 x 18mm | 0.12 | 10 | 100 |
| P901.075 | 20 x 20mm | 0.14 | 10 | 100 |
| P901.08 | 22 x 22mm | 0.12 | 10 | 100 |
| P901.21 | 28 x 15mm | 0.15 | 5 | 100 |
| P901.22 | 28 x 22mm | 0.17 | 5 | 50 |
| P901.09 | 28 x 28mm | 0.17 | 5 | 50 |
| P901.225 | 35 x 22mm | 0.27 | 5 | 50 |
| P901.23 | 35 x 28mm | 0.26 | 5 | 30 |
| P901.10 | 35 x 35mm | 0.27 | 5 | 50 |
| P901.236 | 42 x 28mm | 0.40 | 2 | 30 |
| P901.2361 | 42 x 35mm | 0.34 | 2 | 20 |
| P901.11 | 42 x 42mm | 0.39 | 2 | 30 |
| P901.238 | 54 x 28mm | 0.47 | 2 | 20 |
| P901.24 | 54 x 42mm | 0.63 | 2 | 20 |
| P901.12 | 54 x 54mm | 0.63 | 2 | 20 |

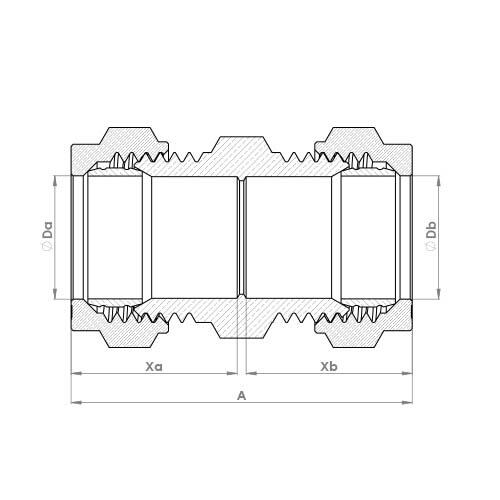

Dimensions
| Code | A | XA | XB | DA | DB |
|---|---|---|---|---|---|
| P901.01 | 20 | 8 | 8 | 6 | 6 |
| P901.02 | 20 | 8 | 8 | 8 | 8 |
| P901.13 | 22 | 7 | 9 | 8 | 6 |
| P901.14 | 22 | 7 | 9 | 10 | 8 |
| P901.03 | 23 | 8 | 8 | 10 | 10 |
| P901.15 | 22 | 9 | 7 | 12 | 8 |
| P901.16 | 23 | 9 | 10 | 12 | 10 |
| P901.04 | 23 | 8 | 8 | 12 | 12 |
| P901.164 | 25 | 12 | 8 | 14 | 10 |
| P901.166 | 25 | 11 | 8 | 14 | 12 |
| P901.042 | 25 | 9 | 9 | 14 | 14 |
| P901.17 | 23 | 14 | 7 | 15 | 8 |
| P901.18 | 25 | 13 | 9 | 15 | 10 |
| P901.19 | 25 | 13 | 8 | 15 | 12 |
| P901.190 | 25 | 11 | 12 | 15 | 14 |
| P901.05 | 24 | 9 | 9 | 15 | 15 |
| P901.1905 | 25 | 13 | 9 | 16 | 10 |
| P901.191 | 26 | 11 | 12 | 16 | 14 |
| P901.192 | 25 | 11 | 11 | 16 | 15 |
| P901.062 | 27 | 10 | 10 | 16 | 16 |
| P901.1922 | 27 | 10 | 10 | 18 | 10 |
| P901.1921 | 27 | 10 | 10 | 18 | 12 |
| P901.193 | 27 | 13 | 12 | 18 | 15 |
| P901.07 | 28 | 11 | 11 | 18 | 18 |
| P901.20 | 26 | 12 | 10 | 22 | 15 |
| P901.203 | 27 | 12 | 11 | 22 | 18 |
| P901.075 | 26 | 9 | 9 | 20 | 20 |
| P901.08 | 26 | 9 | 9 | 22 | 22 |
| P901.21 | 28 | 13 | 12 | 28 | 15 |
| P901.22 | 28 | 14 | 12 | 28 | 22 |
| P901.09 | 27 | 10 | 10 | 28 | 28 |
| P901.225 | 33 | 16 | 12 | 35 | 22 |
| P901.23 | 34 | 14 | 15 | 35 | 28 |
| P901.10 | 34 | 34 | 34 | 35 | 35 |
| P901.236 | 39 | 18 | 16 | 42 | 28 |
| P901.2361 | 39 | 18 | 16 | 42 | 35 |
| P901.11 | 38 | 15 | 15 | 42 | 42 |
| P901.238 | 42 | 22 | 15 | 54 | 28 |
| P901.24 | 42 | 19 | 17 | 54 | 42 |
| P901.12 | 38 | 13 | 13 | 54 | 54 |
Working Conditions
These working conditions outline the specific temperatures and pressures required for the product to perform reliably, ensuring optimal functionality, safety, and long-term durability.
All working conditions assume that the components have been assembled and connected correctly, and adhere to their respective tube compatibility.
If you are planning to use our products in applications outside the scope of our recommendations, approval must be sought from us beforehand. Please contact us in these cases.
Working Conditions for use with Liquids
| Temperature (°C) | Pressure (bar) |
|---|---|
| 15mm ≤ 28mm | |
| 30 | 16 |
| 65 | 13 |
| 95 | 10 |
| 28mm ≤ 54mm | |
| 30 | 16 |
| 65 | 10 |
| 95 | 7 |
| 6mm ≤ 15mm | |
| 30 | 25 |
| 65 | 25 |
| 95 | 16 |
Working Conditions for use with Fuel Gas
| Temperature (°C) | Pressure (bar) |
|---|---|
| 6mm ≤ 54mm | |
| -20 | 5 |
| 70 | 1 |
| 70 | 0 |
Working Conditions for use with Compressed Air
| Temperature (°C) | Pressure (bar) |
|---|---|
| 6mm ≤ 28mm | |
| 0 | 10 |
| 40 | 10 |
| 40 | 0 |
